Recommended maximum air velocities in ventilation ducts.

These air velocities are in accordance with good practice. A 8 2 1 1 ashrae research project 1033 rp final report effects of air velocity on grease deposition in exhaust ductwork documented that grease deposition is reduced as air velocity is reduced primarily due to less turbulence at the duct surface. Recommended duct velocities fpm duct type residential commercial institutional industrial main ducts 700 900 1000 1300 1200 1800 branch ducts 600 700 600 900 800 1000 as a service technician we are often expected to understand a bit about design to fully diagnose a problem. Ventilation systems for ventilation and air handling air change rates ducts and pressure drops charts and diagrams and more.

The shaft is surrounded by kitchens and toilets. When you put the ducts in an unconditioned attic and have the minimum insulation allowed you want to move the air at a higher velocity pushing it up near the maximum recommended by acca manual d 900 feet per minute fpm for supply ducts and 700 fpm for return ducts. Air flow and velocity due to natural draft air flow volume and velocity due to stack or flue effect caused by indoor hot and outdoor. Air ducts velocity diagram air flow volume duct size velocity and dynamic pressure.

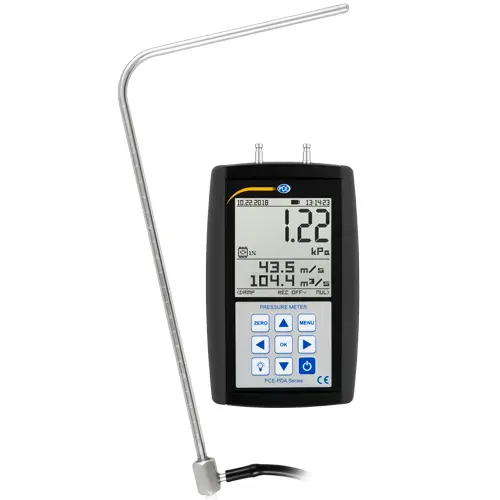

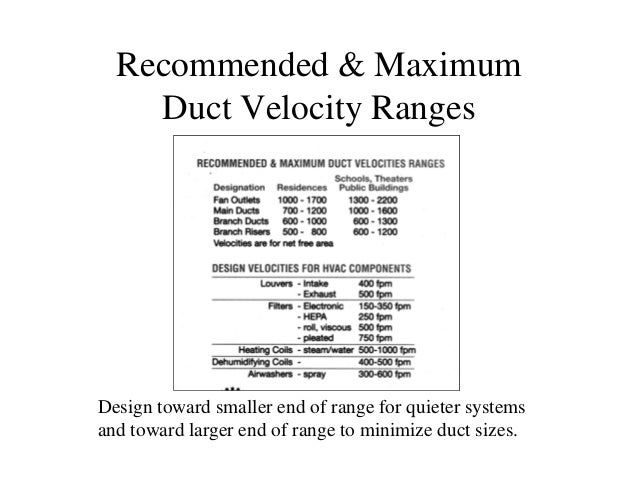

Table 3 2 gives the recommended air velocities in feet per minute for different requirements. Duct velocity has many. Ventilation systems for ventilation and air handling air change rates ducts and pressure drops charts and diagrams and more. Hvac suitable air duct velocities.

Tests were performed at velocities of 500 fpm 1000 fpm 1500 fpm and 2000 fpm. Maximum duct velocities m s nr design levels risers main branches ductwork to grilles ductwork to diffusers extract stub ducts above ceiling voids 25 5 3 1 5 1 1 5 30 6 4 2 1 5 2 35 7 5 5 2 5 2 3 38 9 5 5 2 5 2 3 5. Recommended air velocities in ventilation ducts. To minimise the risk of generated noise we would suggest that the following maximum duct velocities should be adhered to.

It should be understood that the fanoutlet velocities depend somewhat on the static pressure as static pressures and fan housing velocity pressures are. I m talking with respect to acceptable noise levels acceptable pressure drop. What is the maximum acceptable design velocity for air inside the ducts in a small parking about 6 ft below ground level.
